尝试内容

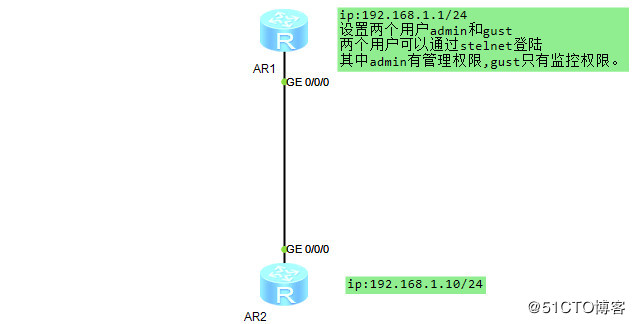

使用AR1作为SSH的Server，AR2作为SSH的Client，，模拟用户从AR2通过SSH登陆到AR1。
AR1 IP：192.168.1.1
AR2 IP：192.168.1.10
user：admin，password：hello，有打点权限
user：gust，password：nihao，有监控权限

AR1（192.168.1.1），配置如下：

<Huawei>system-view [Huawei]sysname AR1 [AR1]rsa local-key-pair create The key name will be: Host % RSA keys defined for Host already exist. Confirm to replace them? (y/n)[n]:y The range of public key size is (512 ~ 2048). NOTES: If the key modulus is greater than 512, It will take a few minutes. Input the bits in the modulus[default = 512]: Generating keys... .............++++++++++++ ..++++++++++++ .......................++++++++ .......++++++++ [AR1]interface g0/0/0 [AR1-GigabitEthernet0/0/0]ip add 192.168.1.1 24 [AR1-GigabitEthernet0/0/0]aaa [AR1-aaa]local-user admin password cipher hello privilege level 3 [AR1-aaa]local-user gust password cipher nihao privilege level 1 [AR1-aaa]local-user admin service-type ssh [AR1-aaa]local-user gust service-type ssh [AR1-aaa]user-interface vty 0 4 [AR1-ui-vty0-4]protocol inbound ssh [AR1-ui-vty0-4]authentication-mode aaa [AR1-ui-vty0-4]quit [AR1]stelnet server enable [AR1]display ssh server status SSH version :1.99 SSH connection timeout :60 seconds SSH server key generating interval :0 hours SSH Authentication retries :3 times SFTP Server :Disable Stelnet server :Enable

AR2（192.168.1.2），配置如下：

<Huawei>system-view [Huawei]sysname AR2 [AR2]interface g0/0/0 [AR2-GigabitEthernet0/0/0]ip add 192.168.1.10 24 [AR2-GigabitEthernet0/0/0]quit [AR2]ssh client first-time enable [AR2]stelnet 192.168.1.1 Please input the username:admin Trying 192.168.1.1 ... Press CTRL+K to abort Connected to 192.168.1.1 ... The server is not authenticated. Continue to access it? (y/n)[n]:y Jan 22 2020 23:57:43-08:00 AR2 %%01SSH/4/CONTINUE_KEYEXCHANGE(l)[1]:The server h ad not been authenticated in the process of exchanging keys. When deciding wheth er to continue, the user chose Y. [AR2] Save the server‘s public key? (y/n)[n]:y The server‘s public key will be saved with the name 192.168.1.1. Please wait... Jan 22 2020 23:57:44-08:00 AR2 %%01SSH/4/SAVE_PUBLICKEY(l)[2]:When deciding whet her to save the server‘s public key 192.168.1.1, the user chose Y. [AR2] Enter password: <AR1>system-view Enter system view, return user view with Ctrl+Z. [AR1]display ssh server session -------------------------------------------------------------------- Conn Ver Encry State Auth-type Username -------------------------------------------------------------------- VTY 0 2.0 AES run password admin --------------------------------------------------------------------
